Ratio
1:1
RPM
4.000 min-1
Max. Axial load
1.250 N
Torque
50 Nm
Weight
11 kg
Collet
ER32 Ø 2/20 mm
EQUIPAMENTO PADRÃO
- Special bag
- Wrenches
- Grase tube
- Instruction book

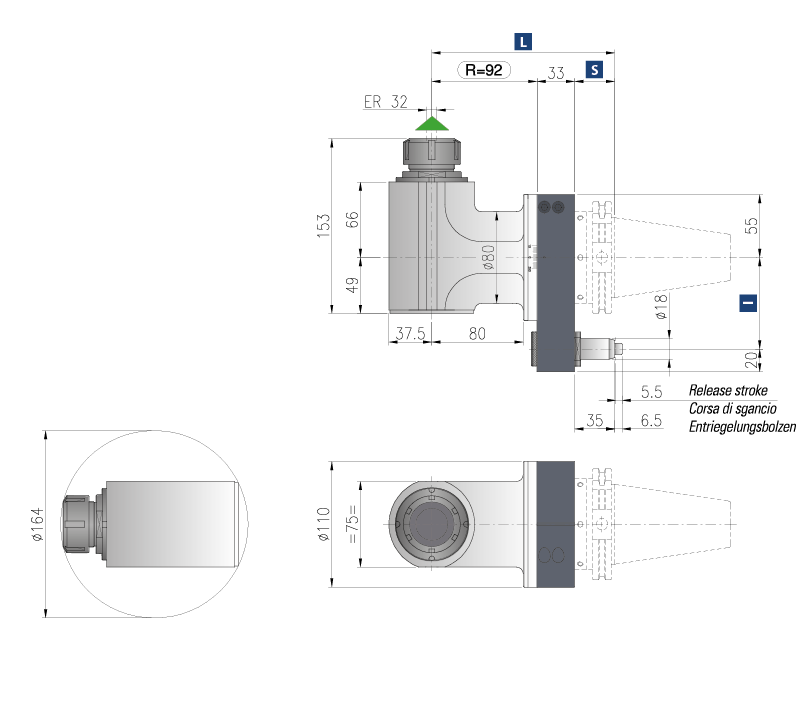

DIN-69871 – CAT
| D | I | S | L |
|---|---|---|---|
| 50 | 80-110 | 35 | 160 |
MAS-BT
| D | I | S | L |
|---|---|---|---|
| 50 | 80-110 | 41 | 166 |
HSK
| D | I | S | L |
|---|---|---|---|
| 63-80 | 80-110 | 42 | 167 |
| 100 | 80-110 | 45 | 170 |
CAPTO
| D | I | S | L |
|---|---|---|---|
| C6 | 80-110 | 38 | 163 |
| C8 | 80-110 | 40 | 165 |
KM
| D | I | S | L |
|---|---|---|---|
| 63 | 80-110 | 40 | 165 |
Opcionais
max 12 bar
Coolant through pin
max 12 bar
Coolant through pin and spindle
6.000 min-1
High speed RPM max
ø 27 mm max
Arbor output
ø 20 mm max
Weldon output
IS0-30 HSK-40
Quick change
